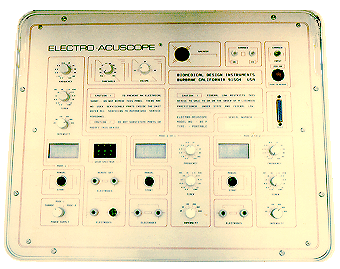

Electro-Acuscope 85P

The Electro-Acuscope 85 P is a pain management system designed for functional precision and reliability. Designed to fit the needs of Sports Therapy ond Occupational Medicine, it is the most advanced instrument in its class.

To Order Call, Fax or Email Animal Therapy Systems
We accept Checks, Money Orders and All Major Credit/Debit Cards


The EAS-85P includes two independent modes.

Mode-1 is a single output modality with two distinct functions. The Display function provides complete control for area assessment. This allows operator to check for electrode contact and selection of treatment site. The Gain Spectrum is provided to manipulate electrode sensitivity and results are displayed on a 3 1/2 digit LCD meter. The audio signal follows the meter, allowing for continuous electrode monitoring, without having to refer back to the instrument.

The Treatment mode has a three separate controls: frequency, intensity and a timer. The treatment sequence is triggered by a manual front panel trigger switch, or by built-in electrode switch.

The Mode-1 has a two sets of output jacks, used as one set at a time. The main electrode output set is used with all hand held control and point specific probes. The remote electrode set is used with all placement electrodes for unattended applications.

Mode-2 is a dual channel modality. Each channel is independently isolated and may be used simultaneously. The controls are independent of each other therefore any variation of intensity, frequency or time can be applied to either output.

Each channel is equipped with a 3 1/2 digit meter which indicates the level of current passing in between the electrodes. This mode can be used in many variations of electrode applications. As an example, set of placement electrodes is attached permanently, while the operator is using area specific probe such
as double roller. In unattended application both outputs can be used on the same patient, or two patient treatment can be applied at the same time.

EAS-85P SPECIFICATIONS

MODE - 1 CONTROLS:

Power - Off / On Control First Switch Position.

Timer - 4, 6, 8, 12, 16, 30sec. 1, 3, 5, 10, 15 min & Cont.

Frequency - 0.5, 1.0, 1.5, 2.0, 2.5, 8.0, 10, 20, 40, 80, 160, 320Hz.

Intensity - 25, 50, 100, 200, 300, 500uA RMS.

Gain Spectrum - Range: 000 Setting - 20K to 300K 999 Setting - 200K to 1Meg

Audio Threshold - Volume.

Output - Complex Wave Form, Modulated Square Wave Envelope Frequency Modulated Pulse train with Alternating of Current Polarity each 1 1/2 Seconds.

Two Sets of Electrode Outputs. (Designed to be used only one set at a time.)

Feedback indicators - 3 1/2 Digit Meter Lo Batt Indicator Loudspeaker Battery Voltage Monitor with Automatic Power Cutoff at Preset Discharge Level.

MODE 2 - CONTROLS:

Both Channels. Power - Off / On Control Second Switch Position.

Timer - 4, 6, 8, 12, 16, 30sec. 1, 3, 5, 10, 15 min & Cont.

Frequency - 0.5, 1.0, 1.5, 2.0, 2.5, 8.0, 10, 20, 40, 80, 160, 320Hz.

Intensity - 25, 50, 100, 200, 300, 500uA RMS.

Output - Complex Wave Form, Modulated Square Wave Envelope Frequency Modulated Pulse train with Alternating of Current Polarity each 1 1/2 Seconds.

Isolated Electrode Outputs.

Feedback indicators - 3 1/2 Digit Current Flow Meter

SYSTEM:

• Power Source - 24 Volt Rechargeable Lead-Acid Battery
• Dimensions - 20" wide, 8" high, 16" deep
• Net weight - 22 pounds

STANDARD ACCESSORIES:

• Trigger Probe, Indifferent Probe, Standard Ball Tip Set, Y Probe, 1x1 Mini Plates, Coil cords, Hand Bar, Spring Tip Probe, Large Double Roller, Conductive Electrolyte, Charger, Manual
